Product Description
 |  | | |

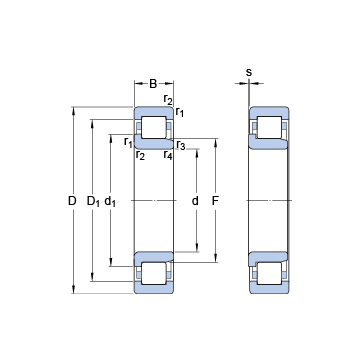

| Bearing number | NJ 310 ECJ | XAA33108/Y33108 | X33108/Y33108 |
| Size (mm) | 110x50x27(mm) | 40x75x26(mm) | 40x75x26(mm) |
| Brand | SKF | Timken | Timken |
| Bore Diameter (mm) | 110(mm) | 40(mm) | 40(mm) |
| Outer Diameter (mm) | 50(mm) | 75(mm) | 75(mm) |
| Width (mm) | 27(mm) | 26(mm) | 26(mm) |
| d | 50 mm 1.9685 in | 40 mm 1.5748 in | 40 mm 1.5748 in |
| D | 110 mm 4.3307 in | 75 mm 2.9528 in | 75 mm 2.9528 in |
| B | 27 mm 1.063 in | 26 mm 1.0236 in | 26 mm 1.0236 in |
| d1 | 71.2 mm 2.8032 in | ||
| D1 | 91.4 mm 3.5984 in | ||
| F | 65 mm 2.5591 in | ||
| r1,2 - min. | 2 mm 0.0787 in | ||
| r3,4 - min. | 2 mm 0.0787 in | ||
| s | 1.9 mm 0.0748 in | ||
| da - min. | 60 mm 2.3622 in | ||
| da - max. | 63 mm 2.4803 in | ||
| db - min. | 73 mm 2.874 in | ||
| Da - max. | 99.6 mm 3.9213 in | ||
| ra - max. | 2 mm 0.0787 in | ||
| Basic dynamic load rating - C | 127 kN | ||
| Basic static load rating - C0 | 112 kN | ||
| Fatigue load limit - Pu | 15 kN | ||
| Reference speed | 6700 r/min | ||
| Limiting speed | 8000 r/min | ||
| Calculation factor - kr | 0.15 |
