Home>Products>Thrust Ball Bearings>53328X NSK Thrust Ball Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

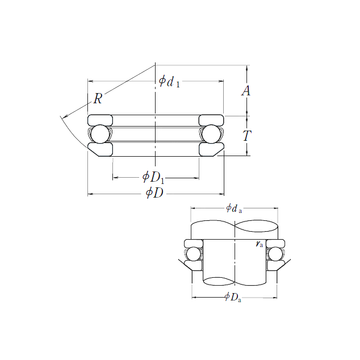

| Bearing number | 53328X | 53328 | 53328U+U328 |
| Size (mm) | 140x240x84.9(mm) | 140x240x84.9(mm) | |
| Brand | NSK | KOYO | CX |
| Bore Diameter (mm) | 140(mm) | 140(mm) | 140(mm) |
| Outer Diameter (mm) | 240(mm) | 240(mm) | 235(mm) |
| Width (mm) | 84,9(mm) | 84,9(mm) | |
| d | 140 mm 5.5118 in | 140 mm 5.5118 in | 140 mm 5.5118 in |
| D | 240 mm 9.4488 in | 240 mm 9.4488 in | 235 mm 9.252 in |
| T | 84,9 mm 3.3425 in | 92 mm 3.622 in | |
| d1 | 235 mm 9.252 in | 235 mm 9.252 in | 144 mm 5.6693 in |
| r min. | 2,1 mm 0.0827 in | 2,1 mm 0.0827 in | |
| A | 68 mm 2.6772 in | 68 mm 2.6772 in | |
| D1 | 144 mm 5.6693 in | 144 mm 5.6693 in | 240 mm 9.4488 in |
| R | 180 mm 7.0866 in | 180 mm 7.0866 in | |
| da min. | 199 mm 7.8346 in | 199 mm 7.8346 in | |
| Da max. | 181 mm 7.126 in | 181 mm 7.126 in | |
| ra max. | 2 mm 0.0787 in | 2 mm 0.0787 in | |
| Weight | 16,3 Kg | 15,1 Kg | 18 Kg |
| Basic dynamic load rating (C) | 370 kN | 350 kN | 367 kN |
| Basic static load rating (C0) | 1130 kN | 1050 kN | 1130 kN |
| (Grease) Lubrication Speed | 670 r/min | 620 r/min | 620 r/min |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
