BS 55/120 /S 7P62U SNFA Thrust Ball Bearings
- SNFA
BS 55/120 /S 7P62U
- Negotiation
- Negotiation
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

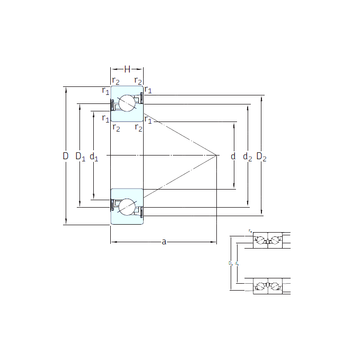

| Bearing number | BS 55/120 /S 7P62U | 1207KR | TUP2 200.120 |
| Size (mm) | 55x120x20(mm) | 61.9125x110x61.91(mm) | |
| Brand | SNFA | Timken | CX |
| Bore Diameter (mm) | 55(mm) | 61,9125(mm) | 200(mm) |
| Outer Diameter (mm) | 120(mm) | 110(mm) | 205(mm) |
| Width (mm) | 20(mm) | 61,91(mm) | |
| d | 55 mm 2.1654 in | 61,9125 mm 2.4375 in | 200 mm 7.874 in |
| D | 120 mm 4.7244 in | 110 mm 4.3307 in | 205 mm 8.0709 in |
| B | 20 mm 0.7874 in | 61,91 mm 2.4374 in | |
| C | 20 mm 0.7874 in | 22 mm 0.8661 in | |
| H | 20 mm 0.7874 in | ||
| a | 96 mm 3.7795 in | ||
| d1 | 81,3 mm 3.2008 in | 84,1 mm 3.311 in | |
| d2 | 90,3 mm 3.5551 in | ||
| r1 min. | 1,5 mm 0.0591 in | ||
| r2 min. | 1,5 mm 0.0591 in | ||
| D1 | 91,1 mm 3.5866 in | ||
| D2 | 101,8 mm 4.0079 in | ||
| da min. | 69 mm 2.7165 in | ||
| Da max. | 110 mm 4.3307 in | ||
| ra max. | 1,5 mm 0.0591 in | ||
| Weight | 1,14 Kg | 1,565 Kg | |
| Basic dynamic load rating (C) | 69,5 kN | 58,5 kN | |
| Basic static load rating (C0) | 228 kN | ||
| (Grease) Lubrication Speed | 5 000 r/min |
