Product Description
 |  |  | |
| Name | 53248 | 53248 | 53248 |
| Brand | NACHI | ISO | KOYO |
| Size (mm) | 240x340x81.6(mm) | 240x340x81.6(mm) | |
| Bore Diameter (mm) | 240(mm) | 240(mm) | 240(mm) |
| Outer Diameter (mm) | 340(mm) | 335(mm) | 340(mm) |
| Width (mm) | 81.6(mm) | 81,6(mm) | |

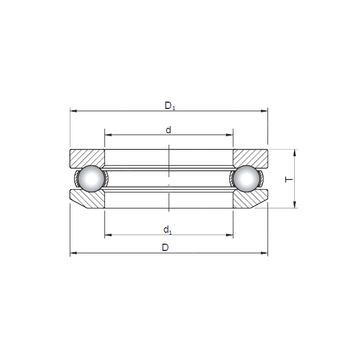

| d | 240 mm 9.4488 in | 240 mm 9.4488 in | 240 mm 9.4488 in |
| D | 340 mm 13.3858 in | 335 mm 13.189 in | 340 mm 13.3858 in |
| T | 81.6 mm 3.2126 in | 81,6 mm 3.2126 in | |
| d1 | 335 mm 13.189 in | 244 mm 9.6063 in | 335 mm 13.189 in |
| r min. | 2.1 mm 0.0827 in | 2,1 mm 0.0827 in | |
| A | 122 mm 4.8032 in | 122 mm 4.8032 in | |
| D1 | 244 mm 9.6063 in | 340 mm 13.3858 in | 244 mm 9.6063 in |
| R | 250 mm 9.8425 in | 250 mm 9.8425 in | |
| Weight | 22.3 Kg | 20,9 Kg | |
| Basic dynamic load rating (C) | 430 kN | 442 kN | |
| Basic static load rating (C0) | 1730 kN | 1800 kN | |
| (Grease) Lubrication Speed | 570 r/min | 520 r/min |
