Home>Products>Thrust Roller Bearings>29320-E1 FAG Thrust Roller Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

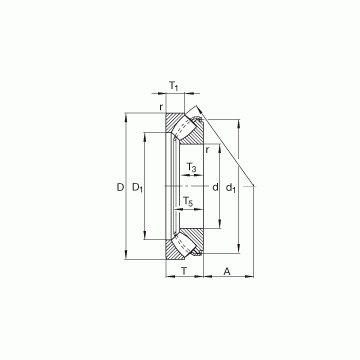

| nB | 1920 1/min / Reference speed | ||
| Bearing number | 29320-E1 | 29320-E1 | 29320 M |
| Size (mm) | 100x170x42(mm) | 100x170x42(mm) | |
| Brand | FAG | INA | CX |
| Bore Diameter (mm) | 100(mm) | 100(mm) | 100(mm) |
| Outer Diameter (mm) | 170(mm) | 170(mm) | 170(mm) |
| Width (mm) | 42(mm) | 42(mm) | |
| d | 100 mm 3.937 in | 100 mm 3.937 in | 100 mm 3.937 in |
| D | 170 mm 6.6929 in | 170 mm 6.6929 in | 170 mm 6.6929 in |
| T | 42 mm 1.6535 in | 42 mm 1.6535 in | 42 mm 1.6535 in |
| A | 58 mm 2.2835 in | 58 mm 2.2835 in | |
| D1 | 127,5 mm 5.0197 in | ||
| Da max | 148 mm 5.8268 in | ||
| Db min | 173 mm 6.811 in | ||
| d1 | 156 mm 6.1417 in | ||
| da min | 135 mm 5.315 in | ||
| db max | 107 mm 4.2126 in | ||
| ra max | 1,5 mm 0.0591 in | ||
| rmin | 1,5 mm 0.0591 in | ||
| T1 | 20,5 mm 0.8071 in | ||
| T3 | 26,2 mm 1.0315 in | ||
| T5 | 37,5 mm 1.4764 in | ||
| m | 3,6 kg / Weight | ||
| Ca | 495000 N / Dynamic load rating (axial) | ||
| C0a | 1340000 N / Static load rating (axial) | ||
| nG | 4200 1/min / Limiting speed | ||
| Cua | 191000 N / Fatigue limit load, axial |
