Product Description
 |  |  | |
| m | 0,4 kg / Weight | ||
| Ca | 106000 N / Dynamic load rating (axial) | ||
| C0a | 350000 N / Static load rating (axial) | ||
| Cua | 35500 N / Fatigue limit load | ||
| nG | 3150 1/min / Limiting speed | ||
| nB | 1170 1/min / Reference speed | ||
| - K81116-TV / Allocated axial cylindrical roller and cage assembly | K81116TV / Allocated axial cylindrical roller and cage assembly | ||
| WS81116 / Allocated shaft locating washer | |||
| Bearing number | 81116-TV | 81116 | 81116-TVPB |
| Size (mm) | 80x105x19(mm) | 80x105x19(mm) | |
| Brand | INA | ISO | NKE |
| Bore Diameter (mm) | 80(mm) | 80(mm) | 80(mm) |
| Outer Diameter (mm) | 105(mm) | 105(mm) | 105(mm) |
| Width (mm) | 19(mm) | 19(mm) | |

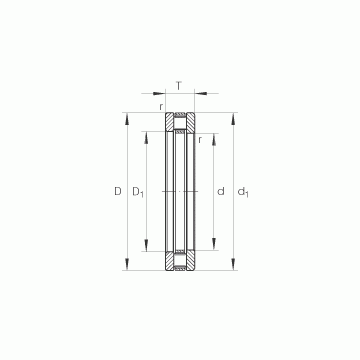

| d | 80 mm 3.1496 in | 80 mm 3.1496 in | 80 mm 3.1496 in |
| D | 105 mm 4.1339 in | 105 mm 4.1339 in | 105 mm 4.1339 in |
| T | 19 mm 0.748 in | ||
| D1 | 82 mm 3.2283 in | ||
| d1 | 105 mm 4.1339 in | ||
| rmin | 1 mm 0.0394 in |
