Product Description
 |  |  | |

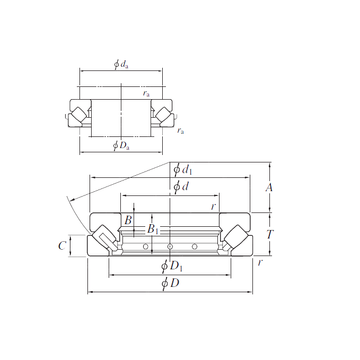

| Bearing number | 29388R | 29388 | 29388 M |
| Size (mm) | 440x680x145(mm) | 440x680x145(mm) | 440x680x145(mm) |
| Brand | KOYO | NTN | ISB |
| Bore Diameter (mm) | 440(mm) | 440(mm) | 440(mm) |
| Outer Diameter (mm) | 680(mm) | 680(mm) | 680(mm) |
| Width (mm) | 145(mm) | 145(mm) | 145(mm) |
| d | 440 mm 17.3228 in | 440 mm 17.3228 in | 440 mm 17.3228 in |
| D | 680 mm 26.7717 in | 680 mm 26.7717 in | 680 mm 26.7717 in |
| T | 145 mm 5.7087 in | 145 mm 5.7087 in | |
| d1 | 655 mm 25.7874 in | 655 mm 25.7874 in | 70,5 mm 2.7756 in |
| r min. | 6 mm 0.2362 in | 6 mm 0.2362 in | |
| A | 245 mm 9.6457 in | 245 mm 9.6457 in | |
| B | 49 mm 1.9291 in | 49 mm 1.9291 in | |
| B1 | 140 mm 5.5118 in | 49 mm 1.9291 in | |
| C | 70 mm 2.7559 in | 70 mm 2.7559 in | |
| D1 | 548 mm 21.5748 in | 548 mm 21.5748 in | 540 mm 21.2599 in |
| da min. | 550 mm 21.6536 in | 550 mm 21.6536 in | |
| Da max. | 600 mm 23.6221 in | 600 mm 23.6221 in | |
| ra max. | 5 mm 0.1969 in | 5 mm 0.1969 in | |
| Weight | 190 Kg | 195 Kg | 180 Kg |
| Basic dynamic load rating (C) | 4290 kN | 3 800 kN | 4400 kN |
