Home>Products>Thrust Roller Bearings>29384 SKF Thrust Roller Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

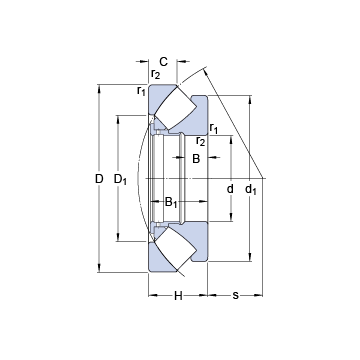

| Bearing number | 29384 | 29384 | 29384-E1-MB |
| Size (mm) | 650x420x140(mm) | 420x650x140(mm) | 420x650x140(mm) |
| Brand | SKF | NTN | FAG |
| Bore Diameter (mm) | 650(mm) | 420(mm) | 420(mm) |
| Outer Diameter (mm) | 420(mm) | 650(mm) | 650(mm) |
| Width (mm) | 140(mm) | 140(mm) | 140(mm) |
| d | 420 mm 16.5354 in | 420 mm 16.5354 in | 420 mm 16.5354 in |
| D | 650 mm 25.5906 in | 650 mm 25.5906 in | 650 mm 25.5906 in |
| H | 140 mm 5.5118 in | ||
| d1 | 626 mm 24.6457 in | 600 mm 23.6221 in | |
| D1 | 520 mm 20.4725 in | 520 mm 20.4725 in | |
| B | 49 mm 1.9291 in | ||
| B1 | 135 mm 5.315 in | ||
| C | 67.5 mm 2.6575 in | 68 mm 2.6772 in | |
| s | 235 mm 9.252 in | ||
| r1,2 - min. | 6 mm 0.2362 in | ||
| da - min. | 535 mm 21.063 in | ||
| Da - max. | 580 mm 22.8347 in | ||
| ra - max. | 5 mm 0.1969 in | ||
| Basic dynamic load rating - C | 3740 kN | ||
| Basic static load rating - C0 | 16000 kN | ||
| Fatigue load limit - Pu | 1290 kN | ||
| Reference speed | 500 r/min | ||
| Limiting speed | 900 r/min | ||
| Factor min. axial load - A | 24 |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
