Product Description
 |  |  | |

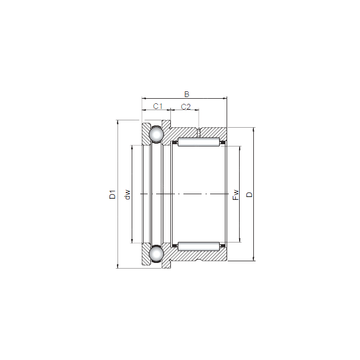

| Bearing number | NKX 25 | NKX 25 | NKX 25 |
| Size (mm) | 37x25x30(mm) | 25x37x30(mm) | 25x37x30(mm) |
| Brand | SKF | CX | NBS |
| Bore Diameter (mm) | 37(mm) | 25(mm) | 25(mm) |
| Outer Diameter (mm) | 25(mm) | 37(mm) | 37(mm) |
| Width (mm) | 30(mm) | 30(mm) | 30(mm) |
| Fw | 25 mm 0.9843 in | ||
| D | 37 mm 1.4567 in | 37 mm 1.4567 in | 37 mm 1.4567 in |
| C | 30 mm 1.1811 in | 30 mm 1.1811 in | |
| C1 | 11 mm 0.4331 in | ||
| C2 | 9.5 mm 0.374 in | ||
| d | 25 mm 0.9843 in | 25 mm 0.9843 in | 25 mm 0.9843 in |
| D1 | 42.1 mm 1.6575 in | ||
| r1,2 - min. | 0.6 mm 0.0236 in | ||
| da - min. | 37.7 mm 1.4843 in | ||
| ra - max. | 0.6 mm 0.0236 in | ||
| rb - max. | 0.3 mm 0.0118 in | ||
| di | 20 mm 0.7874 in | ||
| F | 25 mm 0.9843 in | ||
| Bi | 20 mm 0.7874 in | ||
| Basic dynamic load rating, radial direction - C | 19 kN | ||
| Basic static load rating, radial direction - C0 | 32.5 kN | ||
| Basic dynamic load rating, axial direction - C | 19.5 kN | ||
| Basic static load rating, axial direction - C0 | 40.5 kN | ||
| Fatigue load limit, radial direction - Pu | 4 kN | ||
| Fatigue load limit, axial direction - Pu | 1.5 kN | ||
| Reference speed | 6300 r/min | ||
| Limiting speed | 9000 r/min | ||
| Mass bearing | 0.125 kg |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
