Product Description
 |  |  | |
| Bearing number | ZARF 1560 L TN | ZARF1560-TV | ASTT90 21560 |
| Size (mm) | 15x60x14(mm) | 15x60x14(mm) | |
| Brand | NBS | INA | AST |
| Bore Diameter (mm) | 15(mm) | 15(mm) | 215(mm) |
| Outer Diameter (mm) | 60(mm) | 60(mm) | 220(mm) |
| Width (mm) | 14(mm) | 14(mm) | |

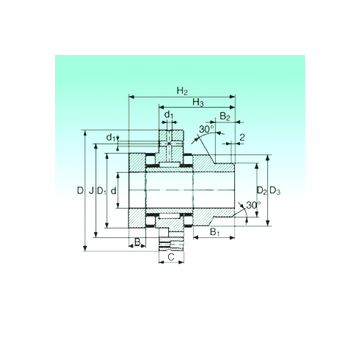

| d | 15 mm 0.5906 in | 15 mm 0.5906 in | |
| D | 60 mm 2.3622 in | 60 mm 2.3622 in | |
| C | 14 mm 0.5512 in | 14 mm 0.5512 in | |
| H | 40 mm 1.5748 in | 40 mm 1.5748 in | |
| d1 | 3,2 mm 0.126 in | 3,2 mm 0.126 in | |
| B | 7,5 mm 0.2953 in | 7,5 mm 0.2953 in | |
| B1 | 20,5 mm 0.8071 in | ||
| B2 | 11 mm 0.4331 in | ||
| D1 | 35 mm 1.378 in | 35 mm 1.378 in | |
| D2 | 24 mm 0.9449 in | ||
| D3 | 34 mm 1.3386 in | ||
| H1 | 26 mm 1.0236 in | 26 mm 1.0236 in | |
| J | 46 mm 1.811 in | 46 mm 1.811 in | |
| Thread (G) | M6 | ||
| Weight | 0,45 Kg | 0,42 Kg | |
| Dynamic load rating radial (C) | 12 kN | 13 kN | |
| Dynamic load rating axial (C) | 23,6 kN | 24,9 kN | |
| Static load rating radial (C0) | 16,5 kN | 17,5 kN | |
| Static load rating axial (C0) | 50,35 kN | 53 kN | |
| (Grease) Lubrication Speed | 2 100 r/min | 2 200 r/min |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
