Product Description
 |  |  | |
| Name | ZARN45105-TV | ZARF45105-L-TV | ZARF45105-TV |
| Brand | INA | INA | INA |
| Size (mm) | 45x105x82(mm) | 45x105x22.5(mm) | 45x105x22.5(mm) |
| Bore Diameter (mm) | 45(mm) | 45(mm) | 45(mm) |
| Outer Diameter (mm) | 105(mm) | 105(mm) | 105(mm) |
| Width (mm) | 82(mm) | 22,5(mm) | 22,5(mm) |

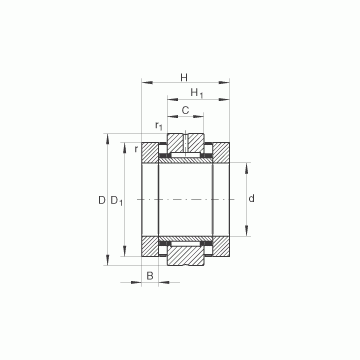

| d | 45 mm 1.7717 in | 45 mm 1.7717 in | 45 mm 1.7717 in |
| D | 105 mm 4.1339 in | 105 mm 4.1339 in | 105 mm 4.1339 in |
| H | 82 mm 3.2283 in | 60 mm 2.3622 in | |
| B | 17,5 mm 0.689 in | 11,5 mm 0.4528 in | 11,5 mm 0.4528 in |
| C | 25 mm 0.9843 in | 22,5 mm 0.8858 in | 22,5 mm 0.8858 in |
| D1 | 90 mm 3.5433 in | ||
| Da max | 91 mm 3.5827 in | ||
| da min | 70 mm 2.7559 in | ||
| H1 | 53,5 mm 2.1063 in | ||
| r1 min | 0,6 mm 0.0236 in | ||
| rmin | 0,3 mm 0.0118 in | ||
| m | 3,02 kg / Weight | ||
| Ca | 154000 N / Dynamic load rating (axial) | ||
| C0a | 405000 N / Static load rating (axial) | ||
| Cr | 40000 N / Dynamic load rating (radial) | ||
| C0r | 82000 N / Static load rating (radial) | ||
| nG Ol | 3300 1/min / Limiting speed for oil lubrication (valid only with adequate oil cooling) | ||
| nG Fett | 1150 1/min / Limiting speed for grease lubrication | ||
| MRL | 3,5 Nm / Bearing frictional torque | ||
| caL | 4000 N/µm / Axial rigidity | ||
| ckL | 2100 Nm/mrad / Tilting rigidity | ||
| Mm | 23,7 kg x cm^2 / Mass moment of inertia for rotating inner ring | ||
| AM45 / Designation of recommended INA locknut | |||
| MA | 150 Nm / Tightening torque (Only valid in conjunction with INA precision locknuts) | ||
| Category | Bearings | Ball Bearings | Ball Bearings |
| BDI Inventory | 0.0 | 0.0 | 0.0 |
| Manufacturer Name | SCHAEFFLER GROUP | SCHAEFFLER GROUP | SCHAEFFLER GROUP |
| Minimum Buy Quantity | N/A | N/A | N/A |
| Weight / Kilogram | 3.616 | 2.215 | 2.036 |
| Product Group - BDI | B00234 | B00234 | B00234 |
