Product Description
 | |

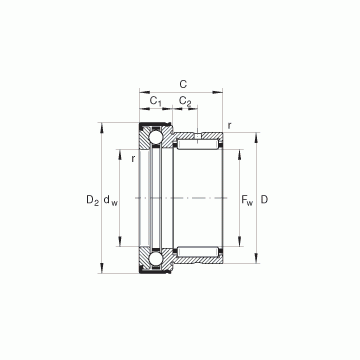

| Name | NKX50-Z |
| Brand | INA |
| Size (mm) | 50x62x35(mm) |
| Bore Diameter (mm) | 50(mm) |
| Outer Diameter (mm) | 62(mm) |
| Width (mm) | 35(mm) |
| Fw | 50 mm 1.9685 in |
| D | 62 mm 2.4409 in |
| C - 35 mm / Tolerance: -0,25 | 35 mm / Tolerance: 0,25 1.378 in |
| C1 - 14 mm / Tolerance: -0,2 | 14 mm / Tolerance: 0,2 0.5512 in |
| C2 | 10 mm 0.3937 in |
| D2 max | 71,5 mm 2.815 in |
| da | 65,5 mm 2.5787 in |
| dw | 50 mm / Tolerance: E8 1.9685 in |
| ra max | 0,6 mm 0.0236 in |
| rmin | 0,6 mm 0.0236 in |
| IR45X50X25 / Suitable inner ring | |
| m | 300 g / Weight |
| Cr | 43000 N / Dynamic load rating (radial) |
| C0r | 74000 N / Static load rating (radial) |
| Ca | 29000 N / Dynamic load rating (axial) |
| C0a | 75000 N / Static load rating (axial) |
| Cur | 12700 N / Fatigue limit load, radial |
| Cua | 3650 N / Fatigue limit load, axial |
| nG | 3300 1/min / Limiting speed |
