Product Description
 |  |  | |
| Name | ZARF2575-TV | ZARF 2575 TN | ZAXFM2575 |
| Brand | INA | NBS | INA |
| Size (mm) | 25x75x18(mm) | 25x75x18(mm) | 25x75x25(mm) |
| Bore Diameter (mm) | 25(mm) | 25(mm) | 25(mm) |
| Outer Diameter (mm) | 75(mm) | 75(mm) | 75(mm) |
| Width (mm) | 18(mm) | 18(mm) | 25(mm) |

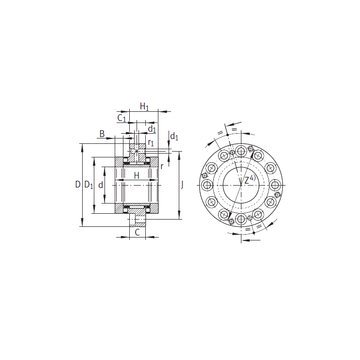

| d | 25 mm 0.9843 in | 25 mm 0.9843 in | 25 mm 0.9843 in |
| D | 75 mm 2.9528 in | 75 mm 2.9528 in | 75 mm / The bearing outer ring is blue anodised 2.9528 in |
| C | 18 mm 0.7087 in | 18 mm 0.7087 in | |
| H | 50 mm 1.9685 in | 50 mm 1.9685 in | 42 mm 1.6535 in |
| d1 | 3,2 mm 0.126 in | 3,2 mm 0.126 in | |
| r min. | 0,3 mm 0.0118 in | ||
| r1 min. | 0,6 mm 0.0236 in | ||
| B | 10 mm 0.3937 in | 10 mm 0.3937 in | 25 mm 0.9843 in |
| C1 | 10 mm 0.3937 in | ||
| D1 | 47 mm 1.8504 in | 47 mm 1.8504 in | |
| H1 | 33 mm 1.2992 in | 33 mm 1.2992 in | |
| J | 58 mm 2.2835 in | 58 mm 2.2835 in | 63 mm 2.4803 in |
| da min. | 39 mm 1.5354 in | ||
| Da max. | 48 mm 1.8898 in | ||
| Weight | 0,78 Kg | 0,78 Kg | |
| Dynamic load rating radial (C) | 22,6 kN | 21,47 kN | |
| Dynamic load rating axial (C) | 35,5 kN | 33,7 kN | |
| Static load rating radial (C0) | 36 kN | 34,2 kN | |
| Static load rating axial (C0) | 86 kN | 81,7 kN | |
| (Grease) Lubrication Speed | 1 900 r/min | 1 800 r/min |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
