Product Description
 |  |  | |
| Name | NAXI 2530 | NAXI 2530Z | 2558/2530 |
| Brand | IKO | IKO | Timken |
| Bore Diameter (mm) | 25(mm) | 25(mm) | 30,162(mm) |
| Outer Diameter (mm) | 42(mm) | 42(mm) | 66,421(mm) |

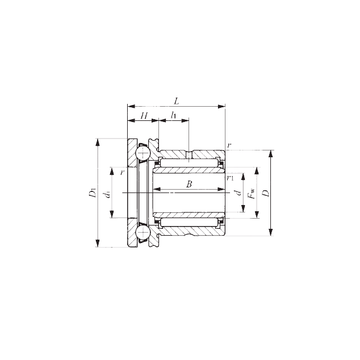

| d | 25 mm 0.9843 in | 25 mm 0.9843 in | 30,162 mm 1.1875 in |
| Fw | 30 mm 1.1811 in | 30 mm 1.1811 in | |
| D | 42 mm 1.6535 in | 42 mm 1.6535 in | 66,421 mm 2.615 in |
| D1 | 47 mm 1.8504 in | 47 mm 1.8504 in | |
| B | 20,5 mm 0.8071 in | 20,5 mm 0.8071 in | 25,357 mm 0.9983 in |
| d1 | 30 mm 1.1811 in | 30 mm 1.1811 in | |
| r min. | 0,6 mm 0.0236 in | 0,6 mm 0.0236 in | |
| r1 min. | 0,3 mm 0.0118 in | 0,3 mm 0.0118 in | |
| H | 11 mm 0.4331 in | 11 mm 0.4331 in | |
| L | 30 mm 1.1811 in | 30 mm 1.1811 in | |
| L1 | 9,5 mm 0.374 in | 9,5 mm 0.374 in | |
| da min. | 40 mm 1.5748 in | 40 mm 1.5748 in | |
| db | 29 mm 1.1417 in | 29 mm 1.1417 in | |
| Weight | 0,179 Kg | 0,185 Kg | |
| Dynamic load rating radial (C) | 25,1 kN | 25,1 kN | |
| Dynamic load rating axial (C) | 20,4 kN | 20,4 kN | |
| Static load rating radial (C0) | 40,1 kN | 40,1 kN | |
| Static load rating axial (C0) | 33,6 kN | 33,6 kN |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
