Product Description
 |  |  | |

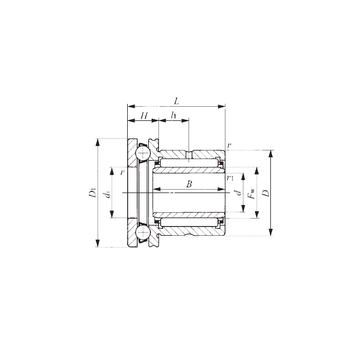

| Name | NAXI 3030 | NAXI 3030Z | 13030 |
| Brand | IKO | IKO | SKF |
| Bore Diameter (mm) | 30(mm) | 30(mm) | 150(mm) |
| Outer Diameter (mm) | 47(mm) | 47(mm) | 225(mm) |
| d | 30 mm 1.1811 in | 30 mm 1.1811 in | 150 mm 5.9055 in |
| Fw | 35 mm 1.378 in | 35 mm 1.378 in | |
| D | 47 mm 1.8504 in | 47 mm 1.8504 in | 225 mm 8.8583 in |
| D1 | 52 mm 2.0472 in | 52 mm 2.0472 in | 203 mm 7.9921 in |
| B | 20 mm 0.7874 in | 20 mm 0.7874 in | 56 mm 2.2047 in |
| d1 | 35 mm 1.378 in | 35 mm 1.378 in | |
| r min. | 0,6 mm 0.0236 in | 0,6 mm 0.0236 in | |
| r1 min. | 0,3 mm 0.0118 in | 0,3 mm 0.0118 in | 2,1 mm 0.0827 in |
| H | 12 mm 0.4724 in | 12 mm 0.4724 in | |
| L | 30 mm 1.1811 in | 30 mm 1.1811 in | |
| L1 | 9 mm 0.3543 in | 9 mm 0.3543 in | |
| da min. | 45 mm 1.7717 in | 45 mm 1.7717 in | 161 mm 6.3386 in |
| db | 34 mm 1.3386 in | 34 mm 1.3386 in | |
| Weight | 0,208 Kg | 0,215 Kg | 7,5 Kg |
| Dynamic load rating radial (C) | 26,9 kN | 26,9 kN | |
| Dynamic load rating axial (C) | 21,2 kN | 21,2 kN | |
| Static load rating radial (C0) | 46,2 kN | 46,2 kN | |
| Static load rating axial (C0) | 37,6 kN | 37,6 kN |
