Home>Products>Thrust Ball Bearings>NU 2319 ECP SKF Thrust Ball Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |

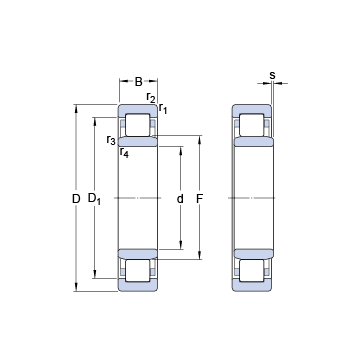

| Name | NU 2319 ECP | 22319 K+AHX2319 | 22319-E-K-W33 |
| Brand | SKF | ISB | NKE |
| Size (mm) | 200x95x67(mm) | 90x200x67(mm) | 95x200x67(mm) |
| Bore Diameter (mm) | 200(mm) | 90(mm) | 95(mm) |
| Outer Diameter (mm) | 95(mm) | 200(mm) | 200(mm) |
| Width (mm) | 67(mm) | 67(mm) | 67(mm) |
| d | 95 mm 3.7402 in | 90 mm 3.5433 in | 95 mm 3.7402 in |
| D | 200 mm 7.874 in | 200 mm 7.874 in | 200 mm 7.874 in |
| B | 67 mm 2.6378 in | 67 mm 2.6378 in | 67 mm 2.6378 in |
| D1 | 168.3 mm 6.626 in | ||
| F | 121.5 mm 4.7835 in | ||
| r1,2 - min. | 3 mm 0.1181 in | ||
| r3,4 - min. | 3 mm 0.1181 in | ||
| s | 6.9 mm 0.2717 in | ||
| da - min. | 110 mm 4.3307 in | ||
| da - max. | 118 mm 4.6457 in | ||
| db - min. | 125 mm 4.9213 in | ||
| Da - max. | 185 mm 7.2835 in | ||
| ra - max. | 2.5 mm 0.0984 in | ||
| rb - max. | 2.5 mm 0.0984 in | ||
| Basic dynamic load rating - C | 530 kN | ||
| Basic static load rating - C0 | 585 kN | ||
| Fatigue load limit - Pu | 69.5 kN | ||
| Reference speed | 3600 r/min | ||
| Limiting speed | 4300 r/min | 3400 r/min | |
| Calculation factor - kr | 0.25 |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
