Home>Products>Thrust Ball Bearings>53211U NACHI Thrust Ball Bearings
English
-
Loyal Bearing Co.Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
 |  |  | |
| Name | 53211U | 53211U | 53211U |
| Brand | KOYO | NACHI | NSK |
| Size (mm) | 55x90x27.3(mm) | 55x90x30(mm) | 55x90x30(mm) |
| Bore Diameter (mm) | 55(mm) | 55(mm) | 55(mm) |
| Outer Diameter (mm) | 90(mm) | 90(mm) | 90(mm) |
| Width (mm) | 27,3(mm) | 30(mm) | 30(mm) |

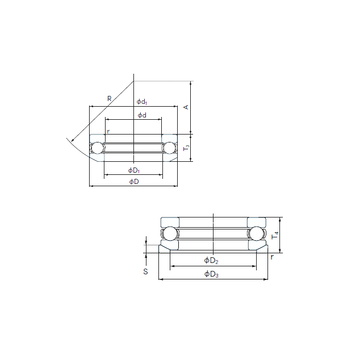

| d | 55 mm 2.1654 in | 55 mm 2.1654 in | 55 mm 2.1654 in |
| D | 90 mm 3.5433 in | 90 mm 3.5433 in | 90 mm 3.5433 in |
| T1 | 27,3 mm 1.0748 in | ||
| T2 | 30 mm 1.1811 in | ||
| d1 | 90 mm 3.5433 in | 90 mm 3.5433 in | 90 mm 3.5433 in |
| r min. | 1 mm 0.0394 in | 1 mm 0.0394 in | 1 mm 0.0394 in |
| A | 35 mm 1.378 in | 35 mm 1.378 in | 35 mm 1.378 in |
| C | 9 mm 0.3543 in | ||
| D1 | 57 mm 2.2441 in | 57 mm 2.2441 in | 57 mm 2.2441 in |
| D2 | 72 mm 2.8346 in | 72 mm 2.8346 in | 72 mm 2.8346 in |
| D3 | 95 mm 3.7402 in | 95 mm 3.7402 in | 95 mm 3.7402 in |
| R | 72 mm 2.8346 in | 72 mm 2.8346 in | 72 mm 2.8346 in |
| da min. | 76 mm 2.9921 in | 76 mm 2.9921 in | |
| Da max. | 69 mm 2.7165 in | 69 mm 2.7165 in | |
| ra max. | 1 mm 0.0394 in | 1 mm 0.0394 in | |
| Weight | 0,77 Kg | 0.800 Kg | 0,819 Kg |
| Basic dynamic load rating (C) | 69,4 kN | 69,5 kN | 70 kN |
| Basic static load rating (C0) | 159 kN | 159 kN | 159 kN |
| (Grease) Lubrication Speed | 2100 r/min | 2100 r/min | 2200 r/min |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
