Product Description
 |  |  | |
| Name | 54226X | 54226XU | 54226 |
| Brand | NSK | NSK | NACHI |
| Size (mm) | 130x190x85.8(mm) | 130x190x96(mm) | 130x190x85.8(mm) |
| Bore Diameter (mm) | 130(mm) | 130(mm) | 130(mm) |
| Outer Diameter (mm) | 190(mm) | 190(mm) | 190(mm) |
| Width (mm) | 85,8(mm) | 96(mm) | 85.8(mm) |

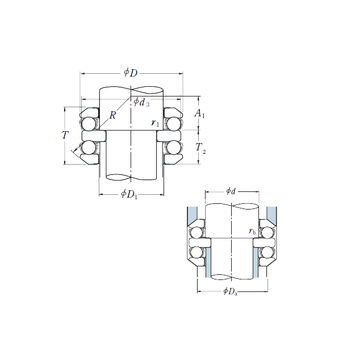

| d | 130 mm 5.1181 in | 130 mm 5.1181 in | 130 mm 5.1181 in |
| d2 | 110 mm 4.3307 in | 110 mm 4.3307 in | 110 mm 4.3307 in |
| D | 190 mm 7.4803 in | 190 mm 7.4803 in | 190 mm 7.4803 in |
| T | 85,8 mm 3.378 in | 96 mm 3.7795 in | 85.8 mm 3.378 in |
| T2 | 51,9 mm 2.0433 in | 57 mm 2.2441 in | |
| d3 | 189,5 mm 7.4606 in | 189,5 mm 7.4606 in | 189.5 mm 7.4606 in |
| r min. | 1,5 mm 0.0591 in | 1,5 mm 0.0591 in | 1.5 mm 0.0591 in |
| r1 min. | 1,1 mm 0.0433 in | 1,1 mm 0.0433 in | 1.1 mm 0.0433 in |
| A1 | 63 mm 2.4803 in | 63 mm 2.4803 in | 63 mm 2.4803 in |
| B | 18 mm 0.7087 in | 18 mm 0.7087 in | |
| D1 | 133 mm 5.2362 in | 133 mm 5.2362 in | 133 mm 5.2362 in |
| R | 140 mm 5.5118 in | 140 mm 5.5118 in | 140 mm 5.5118 in |
| Da max. | 160 mm 6.2992 in | 160 mm 6.2992 in | 160 mm 6.2992 in |
| ra max. | 1,5 mm 0.0591 in | 1,5 mm 0.0591 in | 1.5 mm 0.0591 in |
| rb max. | 1 mm 0.0394 in | 1 mm 0.0394 in | |
| Weight | 8,24 Kg | 10,2 Kg | 7.58 Kg |
| Basic dynamic load rating (C) | 183 kN | 183 kN | 203 kN |
| Basic static load rating (C0) | 550 kN | 550 kN | 620 kN |
| (Grease) Lubrication Speed | 1000 r/min | 1000 r/min | 1000 r/min |
