Product Description
 |  |  | |
| Name | 53214U | 53214U | 53214U |
| Brand | KOYO | NACHI | NSK |
| Size (mm) | 70x105x28.8(mm) | 70x105x32(mm) | 70x105x32(mm) |
| Bore Diameter (mm) | 70(mm) | 70(mm) | 70(mm) |
| Outer Diameter (mm) | 105(mm) | 105(mm) | 105(mm) |
| Width (mm) | 28,8(mm) | 32(mm) | 32(mm) |

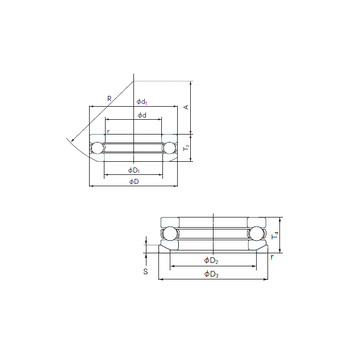

| d | 70 mm 2.7559 in | 70 mm 2.7559 in | 70 mm 2.7559 in |
| D | 105 mm 4.1339 in | 105 mm 4.1339 in | 105 mm 4.1339 in |
| T1 | 28,8 mm 1.1339 in | ||
| T2 | 32 mm 1.2598 in | ||
| d1 | 105 mm 4.1339 in | 105 mm 4.1339 in | 105 mm 4.1339 in |
| r min. | 1 mm 0.0394 in | 1 mm 0.0394 in | 1 mm 0.0394 in |
| A | 38 mm 1.4961 in | 38 mm 1.4961 in | 38 mm 1.4961 in |
| C | 9 mm 0.3543 in | ||
| D1 | 72 mm 2.8346 in | 72 mm 2.8346 in | 72 mm 2.8346 in |
| D2 | 88 mm 3.4646 in | 88 mm 3.4646 in | 88 mm 3.4646 in |
| D3 | 110 mm 4.3307 in | 110 mm 4.3307 in | 110 mm 4.3307 in |
| R | 80 mm 3.1496 in | 80 mm 3.1496 in | 80 mm 3.1496 in |
| da min. | 91 mm 3.5827 in | 91 mm 3.5827 in | |
| Da max. | 84 mm 3.3071 in | 84 mm 3.3071 in | |
| ra max. | 1 mm 0.0394 in | 1 mm 0.0394 in | |
| Weight | 0,99 Kg | 0.980 Kg | 1,05 Kg |
| Basic dynamic load rating (C) | 76,1 kN | 76 kN | 74 kN |
| Basic static load rating (C0) | 199 kN | 199 kN | 189 kN |
| (Grease) Lubrication Speed | 1800 r/min | 1800 r/min | 1900 r/min |
