Product Description
 |  |  | |
| Name | 812/750 M | PCMF 161812 E | BRI 61812 |
| Brand | SKF | SKF | IKO |
| Size (mm) | 1000x750x195(mm) | 16x18x12(mm) | 9.525x28.575x19.3(mm) |
| Bore Diameter (mm) | 1000(mm) | 16(mm) | 9,525(mm) |
| Outer Diameter (mm) | 750(mm) | 18(mm) | 28,575(mm) |
| Width (mm) | 195(mm) | 12(mm) | 19,3(mm) |

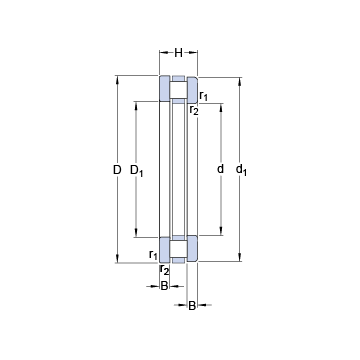

| d | 750 mm 29.5276 in | 16 mm 0.6299 in | 9,525 mm 0.375 in |
| D | 1000 mm 39.3701 in | 18 mm 0.7087 in | 28,575 mm 1.125 in |
| H | 195 mm 7.6772 in | ||
| d1 | 992 mm 39.0551 in | ||
| D1 | 758 mm 29.8425 in | ||
| B | 57.5 mm 2.2638 in | 12 mm 0.4724 in | 19,3 mm 0.7598 in |
| r1,2 - min. | 6 mm 0.2362 in | ||
| da - min. | 955 mm 37.5984 in | ||
| Da - max. | 795 mm 31.2992 in | ||
| ra - max. | 5 mm 0.1969 in | ||
| Basic dynamic load rating - C | 6550 kN | ||
| Basic static load rating - C0 | 36000 kN | ||
| Fatigue load limit - Pu | 2080 kN | ||
| Reference speed | 120 r/min | ||
| Limiting speed | 240 r/min | ||
| d1 | 992 mm 39.0551 in | ||
| D1 | 758 mm 29.8425 in | 24 mm 0.9449 in | |
| r1,2 min. | 6 mm 0.2362 in | ||
| da min. | 955 mm 37.5984 in | ||
| Da max. | 795 mm 31.2992 in | ||
| ra max. | 5 mm 0.1969 in | ||
| Basic dynamic load rating C | 6550 kN | ||
| Basic static load rating C0 | 36000 kN | ||
| Fatigue load limit Pu | 2080 kN | ||
| Minimum axial load factor A | 100 | ||
| Mass bearing | 445 kg |
Loyal Bearing Co., Ltd. has been highly praised by the industry for its high quality products, excellent service and timely supply capability. Loyal Bearing Co., Ltd. wholeheartedly welcomes domestic and foreign customers, peers to call or come to discuss cooperation to create a better future!
